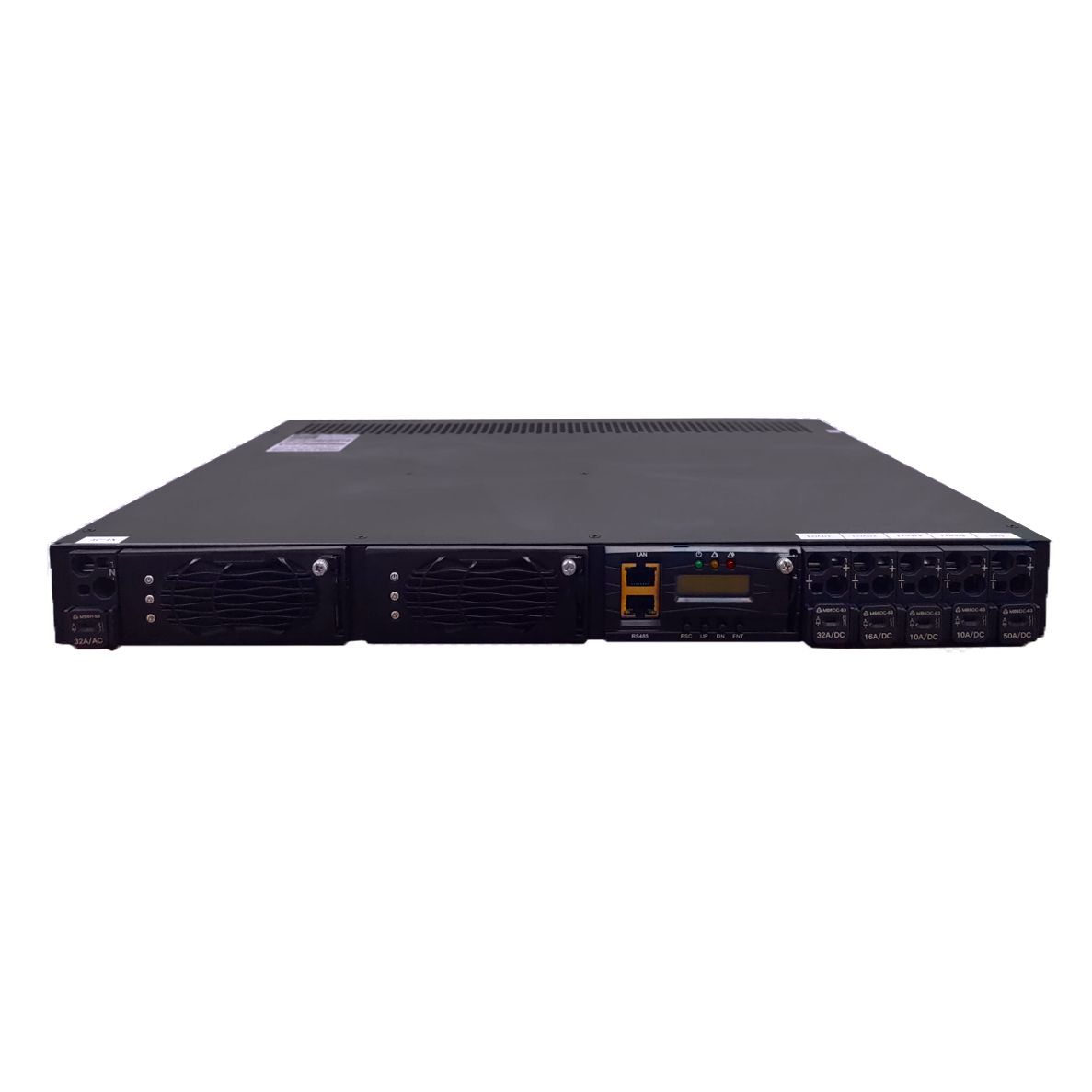

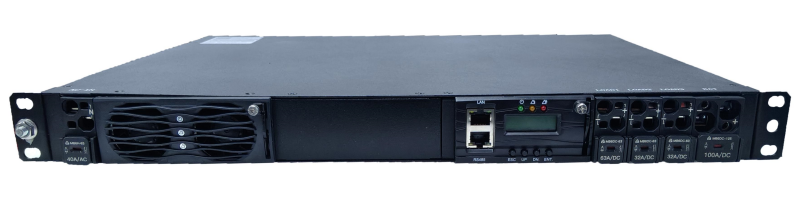

BVT 19 Inch Rack Rectifier System 100A 94% Module Telecom Single Phase 220VAC To 48VDC DC Power Supply

Application

       Introducing our state-of-the-art rectifier system battery charger specifically designed for DC48V applications is an exciting milestone in the field of battery technology. This system, crafted with precision and innovation, represents the culmination of years of research and development, aimed at delivering unparalleled performance and reliability to our customers.

        The DC48V battery charger is tailored to meet the demanding requirements of modern battery-powered systems. Whether you're looking to power telecommunication equipment, data centers, or any other critical infrastructure, this rectifier system ensures that your batteries are always fully charged and ready to perform.

         The system's unmatched performance starts with its ability to deliver a stable and reliable DC output voltage of -48Vdc. This ensures that your batteries are charged efficiently and safely, extending their lifespan and reducing the need for frequent replacements. Additionally, the system offers adjustable equalization and float voltages, allowing you to customize the charging profile to meet the specific needs of your batteries.

        The rectifier system's reliability is further enhanced by its robust design and comprehensive protection features. It is built using high-quality components and undergoes rigorous testing to ensure it can withstand the harshest environments. Overvoltage, overcurrent, and overtemperature protection mechanisms are incorporated into the system, ensuring that it operates safely and efficiently under all conditions.

Feature

 Stable Output Voltage: The charger delivers a precise and stable DC output voltage of 48Vdc, guaranteeing efficient and safe charging of your batteries.

Customizable Charging Profiles: With adjustable equalization and float voltages, you can customize the charging profile to match the specific requirements of your batteries.

Robust Design: Built with high-quality components and undergoing rigorous testing, this charger is designed to withstand harsh environments and provide long-lasting reliability.

Comprehensive Protection: Overvoltage, overcurrent, and overtemperature protection mechanisms ensure the charger operates safely and efficiently under all conditions.

Energy Efficiency: Our advanced technology minimizes energy loss during the charging process, reducing your energy costs and contributing to a greener environment.

Monitoring and Control: An intuitive LCD display provides real-time information on the charger's status, including voltage, battery status, and any active alarms. It also supports various communication protocols for seamless integration with your existing systems.

Specification

-Widely operating range of AC input voltage: 90~290Vac

-Compact 19’ inch rackmount shelf

-Real-time detection of operating status, sound-light alarm

-Perfect battery management, accessory battery temperature detector

-50 amp output per module, 100 amp system capacity max for 1U,200 amp system capacity max for 2U

FAQ

2、What is the working principle of a 48VDC rectifier system?

It rectifies and filters input AC power, then performs high-efficiency conversion through power modules to output regulated 48VDC, with battery charging and discharge management functions.

3、What is the typical input voltage range of the system?

Most 48VDC rectifier systems support a wide AC input range, usually 85–290VAC adapting to different grid conditions.

4、What is the output voltage accuracy of the 48VDC system?

The standard output voltage accuracy is generally ±1% or better, ensuring stable power supply for loads.

5、Can the system work with batteries?

Yes, it integrates battery charge and discharge management, automatically charging batteries when mains power is normal and supplying power via batteries when AC power fails.

6、What is the efficiency of a 48VDC rectifier system?

High-efficiency models reach 94%–97% under full load, reducing energy consumption and heat generation.

7、Is the system hot-swappable?

Core components such as rectifier modules, monitoring modules, and fans support hot swapping, enabling replacement without power interruption.

8、What protection functions does the system have?

It includes overvoltage, undervoltage, overcurrent, short-circuit, over-temperature, and reverse polarity protection to ensure safe operation.

9、How to perform daily maintenance of the rectifier system?

Regularly check module status, fan operation, alarm information, and keep the equipment clean and well-ventilated.

10、What should I do if the system issues an alarm?

First check the alarm code (e.g., AC failure, module fault, battery abnormality), then troubleshoot according to the user manual or contact technical support.

11、Can multiple rectifier systems be used in parallel?

Yes, parallel operation is supported to expand capacity and improve system redundancy.

12、What is the service life of the rectifier module?

Under normal working conditions, the service life is generally 100,000 hours or more.
