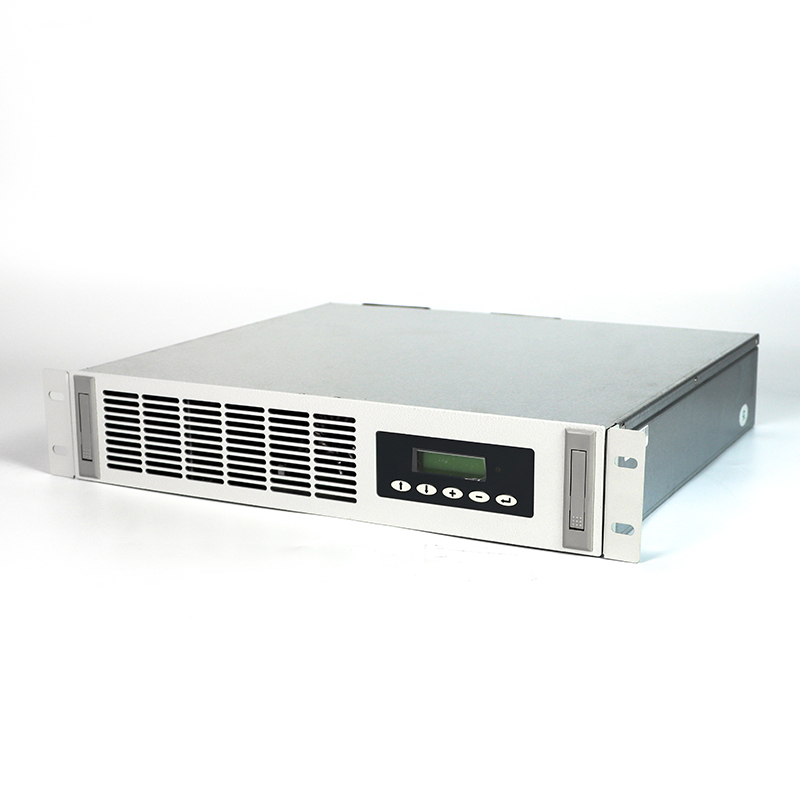

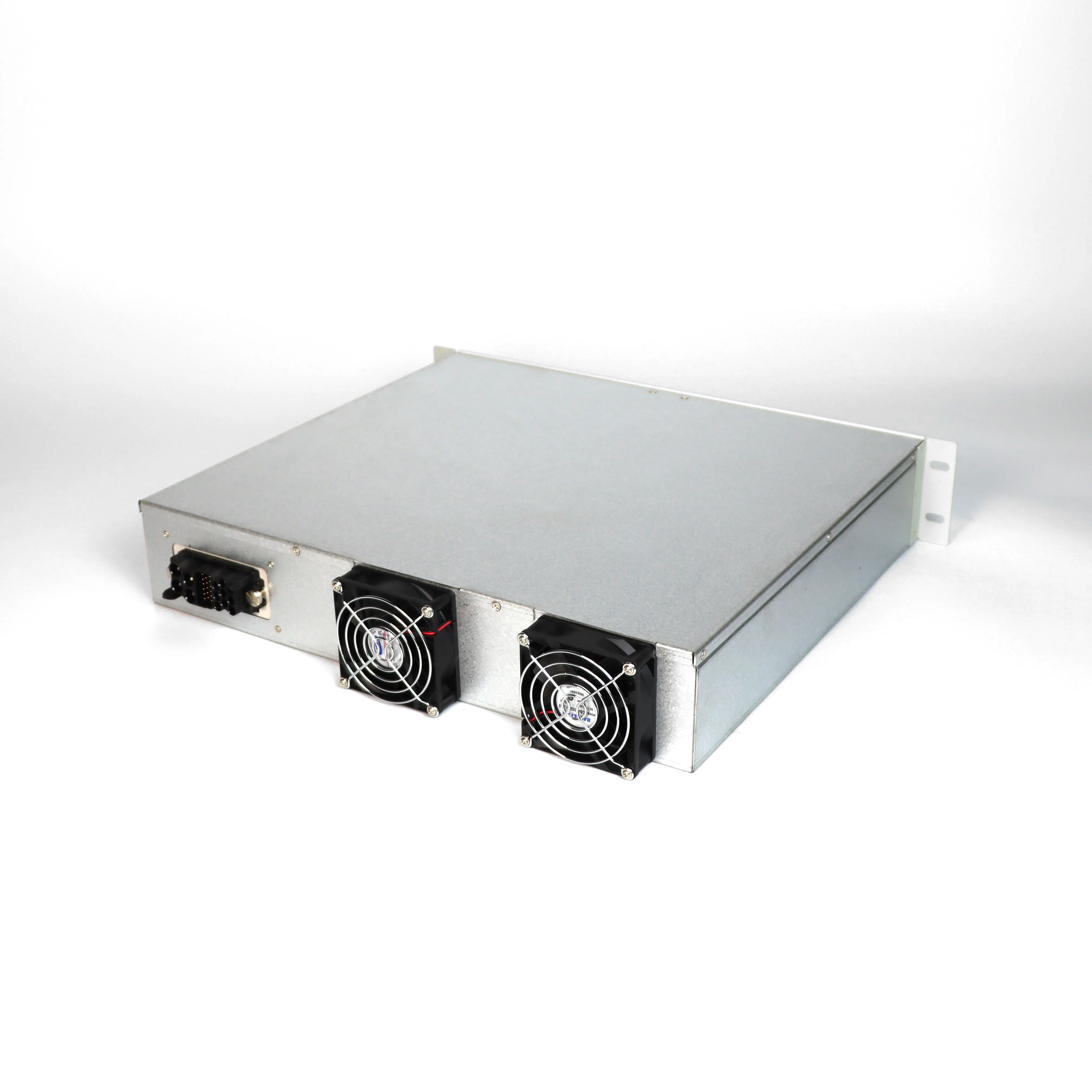

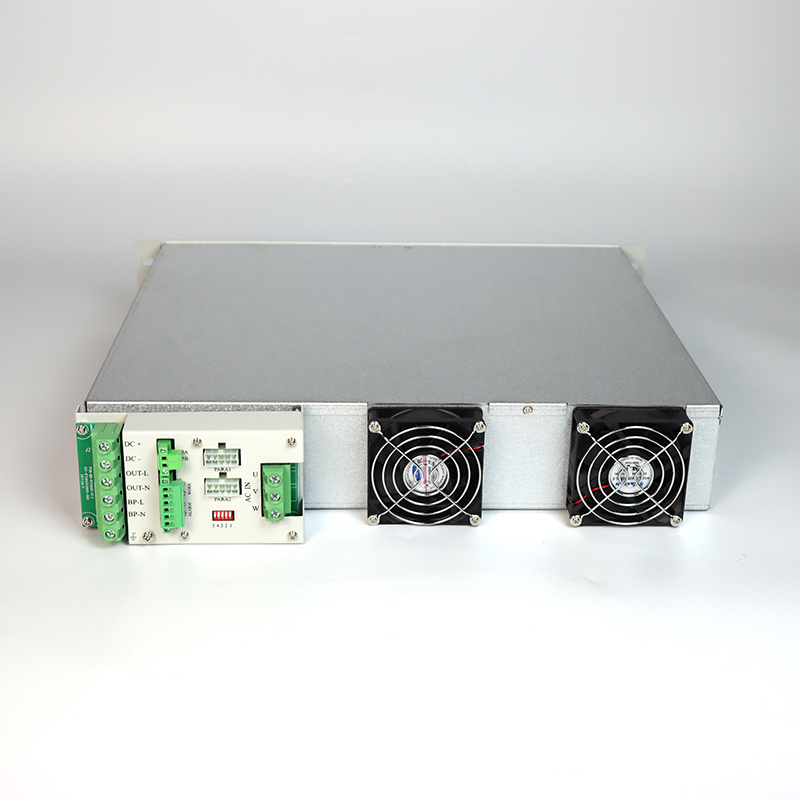

DC220V to AC220V 8KVA Parallel Inverter for Power Station_2U Parallel Inverter DC110V/DC220V to AC220V

Model	BVT220-2208KVAS
Phase	Single Phase
Parallel Function	support parallel
Rated Power	8KVA(6400W)
Bypass Input
Rated Voltage	220Vac
Voltage Range	176~264VAC
Frequency Range	40Hz~55Hz@50Hz system
Battery
DC Input Voltage	220Vdc
DC Voltage Range	220Vdc@185~285Vdc
Battery Type	Lithium Batteries, Lead Acid batteries, Colloidal Batteries
Output
Output Voltage	220Vac
Output frequency	50Hz(±0.1%)
Load regulation	＜3%
Frequency accuracy	＜0.1%
Peak factor	3:1
Parallel uneven flow	＜3% rated current RMS
Dynamic response	Voltage transient range＜3%，transient response recovery time≤60ms（load from 0 to 100）
Overload capacity	Load current ＜105%, continuous work Load current 105～125%, continuous work 10min shutdown Load current 125～150%，continuous work after 1min shutdown Load current＞150%，after 20ms shutdown
Inversion Efficiency (80% resistive load)	≥85%（80% linear load）
Transfer Time	≤8ms
Working Environment
Dielectric strength	2000Vac/10mA/60s
Humiditty	0~90%, no moisture condensation
Operating altitude(m)	≤3000m，1500～3000m, 1% decrease in output for every 100m increase
Noise(1m)	<45dB
Communitcation	RS485
