Battery Charger System DC48V

Home > Products > Rectifier System > Battery Charger System DC48V

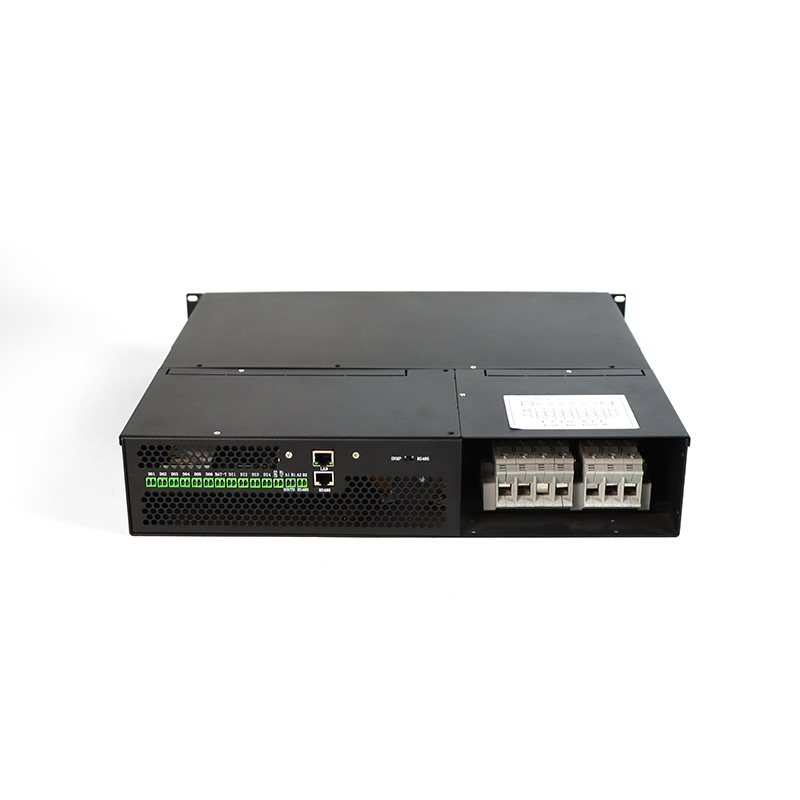

BVT 48VDC 100A RECTIFIER SYSTEM for Data Center Energy Backup




Inquiry
  • Feature
  • Parameter
  • get in touch
  • downloads

Compact Design for Space-Saving Efficiency
Our PLY5E Ⅰ switch-mode power supply (SMPS) boasts a compact 2U height design, perfectly fitting into standard racks to maximize space utilization in your equipment room. It combines exceptional performance with stability, ensuring reliable power delivery.

Advanced Communication Protocols for Smart Management
Equipped with support for YD/T 1363 and SNMP communication protocols, our power supply allows for seamless remote monitoring and management. This enables you to keep track of power status anytime, anywhere, enhancing operational efficiency and intelligence.

High Efficiency for Green Power Solutions
With an impressive energy conversion efficiency of up to 93%, our power supply significantly reduces energy consumption and carbon emissions. It provides eco-friendly and efficient power support for your equipment, contributing to sustainable development.

Fully Customizable to Meet Your Needs
We understand that every project has its unique requirements. That's why we offer comprehensive customization services. Whether it's input voltage range, output power, or special functional needs, we can tailor a dedicated power supply solution to perfectly match your specifications.



rectifier module specification:

Rectifier ModuleInput Amps@Full load
110/220V		Output CurrentOutput VoltageWeight
BR48300010.9/ 8.1850A, adjustable 1~50A-53.5Vdc, adjustable -43~ - 58Vdc 2.3kgs


rectifier system specification:

ModelBWT302S048100D2
PhaseSingle Phase
Module Quantities2
AC Input
Efficiency92.30%
Power Capacity(Max)6000W
AC Input voltage220Vac
Input voltage range90~290Vac(derate≤176Vac)
Power factor>0.99
Frequency Range45~66Hz
THDi＜5%@ full load；＜10% @half load
DC output
Output Voltage-48Vdc
Output Current100A
Output Current Max110A
Equ- Voltage56.4V（42~58Vdc adjustable）
Float Voltage53.5V（42~58Vdc adjustable）
Output Ripple Voltage≤200mV(0~20mHz)
Leakage Current≤10mA
RegulationLine: 1%, Load: 2%
Current Sharing≤±5%
Ripple voltage≤200mV<0-20mHz>
Load Breaker3*Terminals or customization
Battery Breaker1*battery terminal or customization
BLVDYes
ShuntYes
Monitor
ModelM30M35
DO/DI

LCD displayvoltage,bat
 status, total current, load current, active alarm
Warning RemindSound and light
Communitcation ProtocolYD/T 1363 Communitcation ProtocolModbus
Working Environment
Dielectric strength2000Vac/10mA/60s
Humiditty5%~95%, no moisture condensation
Work temperature-40℃~55℃
Storage temperature-40℃~70℃
Noise(1m)<55dB
Size(mm)482*320*88(2U)
CommunitcationRS485/SNMP remoteRS485
